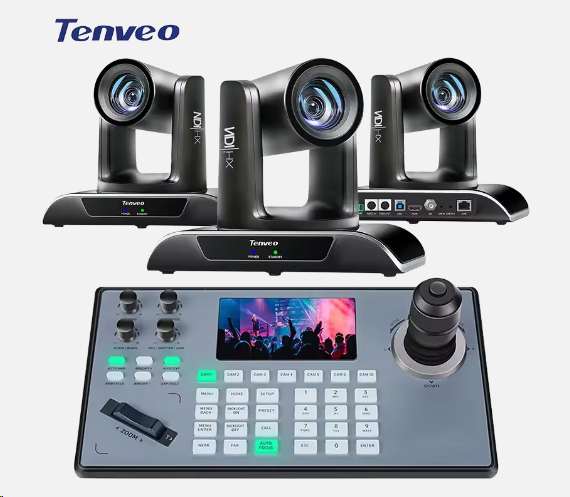

SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved top professional live streaming system ai auto tracking 20x zoom ndi ptz camera with joystick controller at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
Product Description
Video Conference System, Network Conference System
Broadcast Live Streaming System
Brand Name: Tenveo
Model Number: TEVO-VHD620A(NDI) + KB200-PRO
Auto Tracking, Optional, included NDI, POE, 4K
Sensor: 1/2.8'' SONY CMOS
Resolution: 1080p@60/50/30/25fps, 720p@60/50/30/25fps
Zoom: 20x Optical + 8X Digital Zoom
Lens: f=4.6mm ~ 92mm
View angle: 69.5° ~ 3.86°
Joystick:4D
Simultaneous Interpretation:NO
Warranty: 3 Years
Interface: RS232, RS485, USB3.0, HDMI, RJ45, SDI
Main features
Specifications
|
Model No. |
VHD612A NDI |
VHD620A NDI |
VHD630A NDI |
|
Camera |
|||
|
Sensor |
1/2.8'' |
||
|
Effective Pixels |
2.07MP |
||
|
Video Signals |
1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080I60, 1080I59.94, 1080I50, 720P60, 720P59.94, 720P50 |
||
|
Zoom |
12x optical zoom |
20x optical zoom |
30x optical zoom |
|
Lens |
f=4.2mm ~ 50.4mm |
f=4.6mm ~ 92mm |
f=4.6mm ~ 138mm |
|
Aperture |
F1.8 ~ F2.8 |
F1.8 ~ F3.6 |
F1.8 ~ F3.6 |
|
Horizontal Angle |
70.2° ~ 6.52° |
62.3° ~ 3.46° |
62.3° ~ 2.31° |
|
Vertical Angle |
42.6° ~ 3.76° |
36.1° ~ 1.92° |
36.1° ~ 1.29° |
|
Diagonal Angle |
77.5° ~ 7.53° |
69.5° ~ 3.86° |
69.5° ~ 2.63° |
|
Digital Zoom |
8X |
||
|
Video Output |
USB 3.0, HDMI, RJ45, SDI |
||
|
Signal Standard |
NTSC/PAL |
||
|
Control Interface |
RS232, RS485, USB, NET |
||
|
Shutter |
1/30s ~ 1/10000s |
||
|
Digital Noise Reduction |
2D&3D Digital Noise Reduction |
||
|
Control Protocol |
VISCA, Pelco-D,Pelco-P |
||
|
Horizontal Rotation |
350° (±175°) 0.1°/s～100°/s |
||
|
Vertical Rotation |
180° (±90°)0.1°/s～80°s |
||
|
H & V Flip |
Support |
||
|
Image Freeze |
Support |
||
|
PoE |
Support |
||
|
Number of Preset |
255 |
||
|
IPC Features |
|||
|
Video Encoding Format |
H.264/H.265/MJPG |
||
|
Video Stream |
Main Stream, Sub Stream |
||
|
Main Stream Resolution |
1920x1080, 1280x720, 1024x576 , 940x540,etc. |
||
|
Sub Stream Resolution |
1280x720, 1024x576, 720x480, 720x408,etc. |
||
|
Video Bit Rate |
32Kbps ~ 102400Kbps |
||
|
Network Protocol |
NDI |HX2,SRT,TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
||
|
Generic Specification |
|||
|
Power Supply |
DC 12V/2A |
||
|
Power Consumption |
12W |
||
|
Product Size |
247.1*152*169.6mm/285*217*197mm(before / after packing) |
||
|
Product Weight |
1.37kg/2.45kg (net / gross weight) |
||
|
Product Name |
PTZ joystick keyboard controller |
|
Model No |
KB200pro |
|
CHIP |
HIS3536DV100 |
|
SYSTEM |
Linux |
|
Max equipment |
999 |
|
Decoding |
H.265, H.264 |
|
RESOLUTION |
MAX 1080P for 1 channel:1920*1080@30fps |
|
PROTOCOL |
VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF |
|
Camera Control |
Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES |
|
User Interfaces |
Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6 |
|
Joystick |
4D |
|
Output |
RS422(Reserved), RS232(Development port), RJ45 |
|
Accessories |
Knob, Silicone button |
|
Beep |
On/off |
|
Display |
TFT LCD 720*1280 |
|
Max camera control |
Max 255 with multiple protocols including NDI/IP |
|
Power consumption |
≤5W |
|
POWER |
DC12V-2A POE |
|
Storage Condition |
|
|
Work temperature |
-10℃~55℃/ 14°F~131°F |
|
Work humidity |
20%~80%frostless |
|
Storage temperature |
-10℃~60℃/ 14°F~140°F |
|
Storage humidity |
0~90%frostless |
|
Product Size |
321*181*116mm/354*221*135mm(before/afterpacking) |
|
Product Weight |
1.83kg/2.45kg( (net / gross weight)) |
|
Note：Not all features are available on all control protocols |
|
